# Woocommerce Automations

This guide explains how to set up automations for Woo commerce websites to recover abandoned carts, send COD confirmations, send order and shipping updates using Whautomate.

## How to add Automations in Woocommmerce

#### Step 1: Go to the Whautomate and select the Integrations menu.

#### Step 2: Select the Woocommerce Edit Setup button to continue

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FgIsAWSEjql7sW3daJt23%2Fimage.png?alt=media&amp;token=4b95f202-73db-4457-834e-cd182890eede" alt=""><figcaption></figcaption></figure>

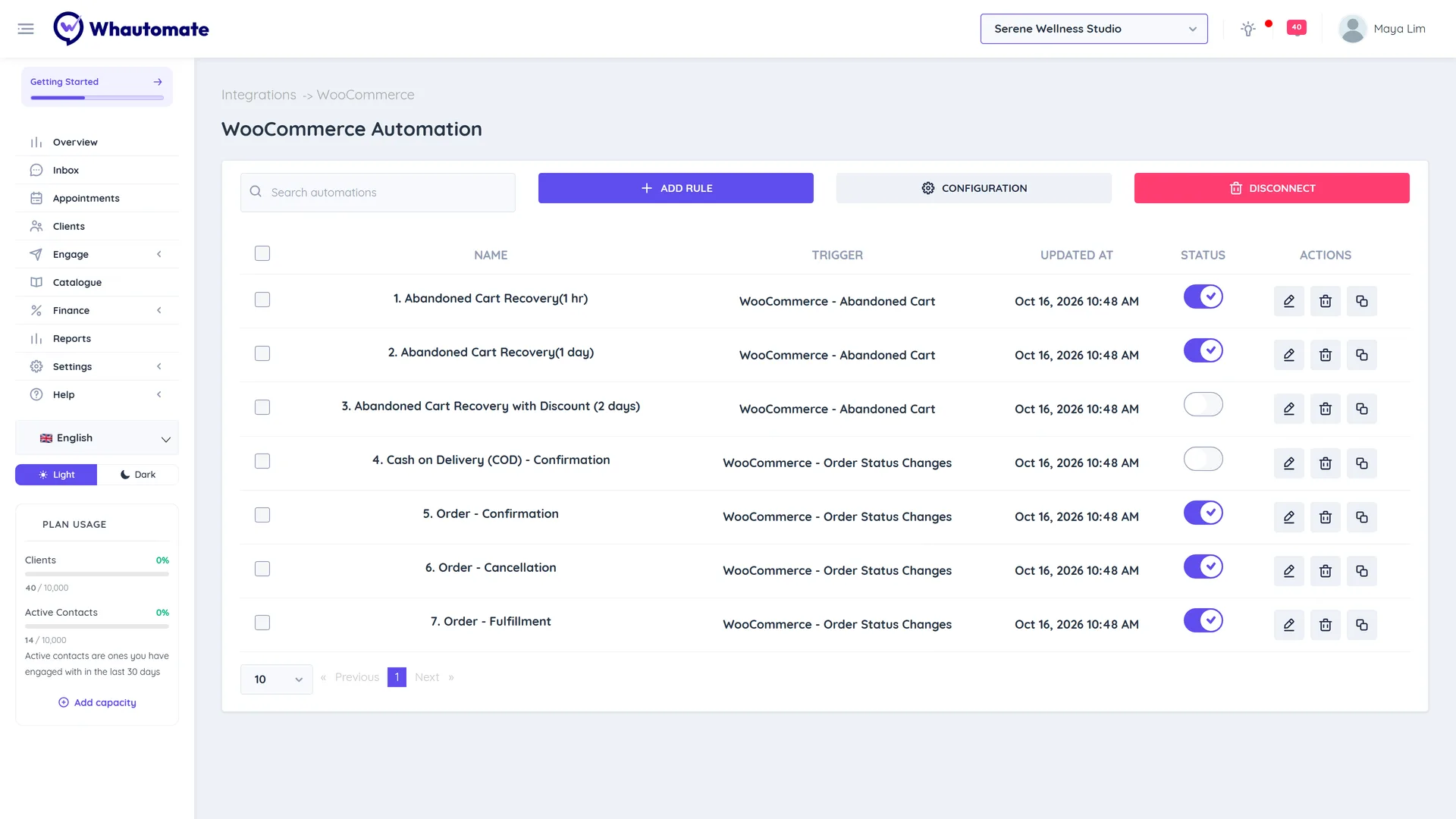

#### Step 3: Click the Add Rule button&#x20;

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FZ0FZ3ynZN6DXvgjq3Zwq%2FScreenshot%2010-27-2023%20at%2007.49%20PM.png?alt=media&amp;token=d1fefbaa-a876-4f48-a637-9b5e14a8bb36" alt=""><figcaption></figcaption></figure>

#### Step 4:  Please Select the Automation you want to add in Woocommerce

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FPRAnRVnSKbBQRTJLJlpe%2FScreenshot%2010-27-2023%20at%2007.53%20PM.png?alt=media&amp;token=5b902058-ff91-4005-8e7a-468e4c30762d" alt=""><figcaption></figcaption></figure>

#### Step 5: Click the Add Condition button to add conditions

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FyQww66aQgLJtRfmdWANi%2Fimage.png?alt=media&amp;token=0d5a5bb8-890d-4654-9edb-f6f6450305c2" alt=""><figcaption></figcaption></figure>

#### Step 6: Please Choose the  Field

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FHBzShnrTPLLQcyJH7YJl%2Fimage.png?alt=media&amp;token=55642105-7453-4e07-8e09-ac1c147a5160" alt=""><figcaption></figcaption></figure>

#### Step 7: Please Select the Operator and Enter the value

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FBC2hrwvZQ8Rbzr5StSn4%2Fimage.png?alt=media&amp;token=4656f380-452f-49d3-b043-f930ee4859b2" alt=""><figcaption></figcaption></figure>

#### Step 8: Click the Add Action button to add Actions

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FxyjoyVun0oJjI6A2z65e%2Fimage.png?alt=media&amp;token=160bb593-8153-4ce3-9ffd-2343376a8945" alt=""><figcaption></figcaption></figure>

#### Step 9:  Please Choose the Actions you want to add.

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FUpuqJcZeJlNSjJFmxNi0%2Fimage.png?alt=media&amp;token=9e1c084d-67dc-4ea6-89bc-e7c8d7b47c32" alt=""><figcaption></figcaption></figure>

#### Step 10: Fill the required details as shown in the picture

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FoGaBn2M2fONpoKGYsBuZ%2Fimage.png?alt=media&amp;token=836414b7-53c8-4904-8f32-984a2f5fe166" alt=""><figcaption></figcaption></figure>

#### Please enter (#) to select from personalisation variables in the parameters, E.g., client name, location name, etc.&#x20;

#### Available Variables:

{{woocommerce.orderNumber}}

{{woocommerce.orderStatusUrl}}

{{woocommerce.abandonedCheckoutUrl}}

{{woocommerce.trackingUrl}}

{{woocommerce.trackingCompany}}

{{woocommerce.trackingNumber}}

{{woocommerce.orderAmount}}

{{woocommerce.referenceId}}

{{woocommerce.productImageUrl}}

#### Step 11: After filling all details please click the Save button&#x20;

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FKgge17z4mLsB4xrkoTnZ%2Fimage.png?alt=media&amp;token=6e441762-6ea1-4d3b-9da8-4fb5dcce8a62" alt=""><figcaption></figcaption></figure>

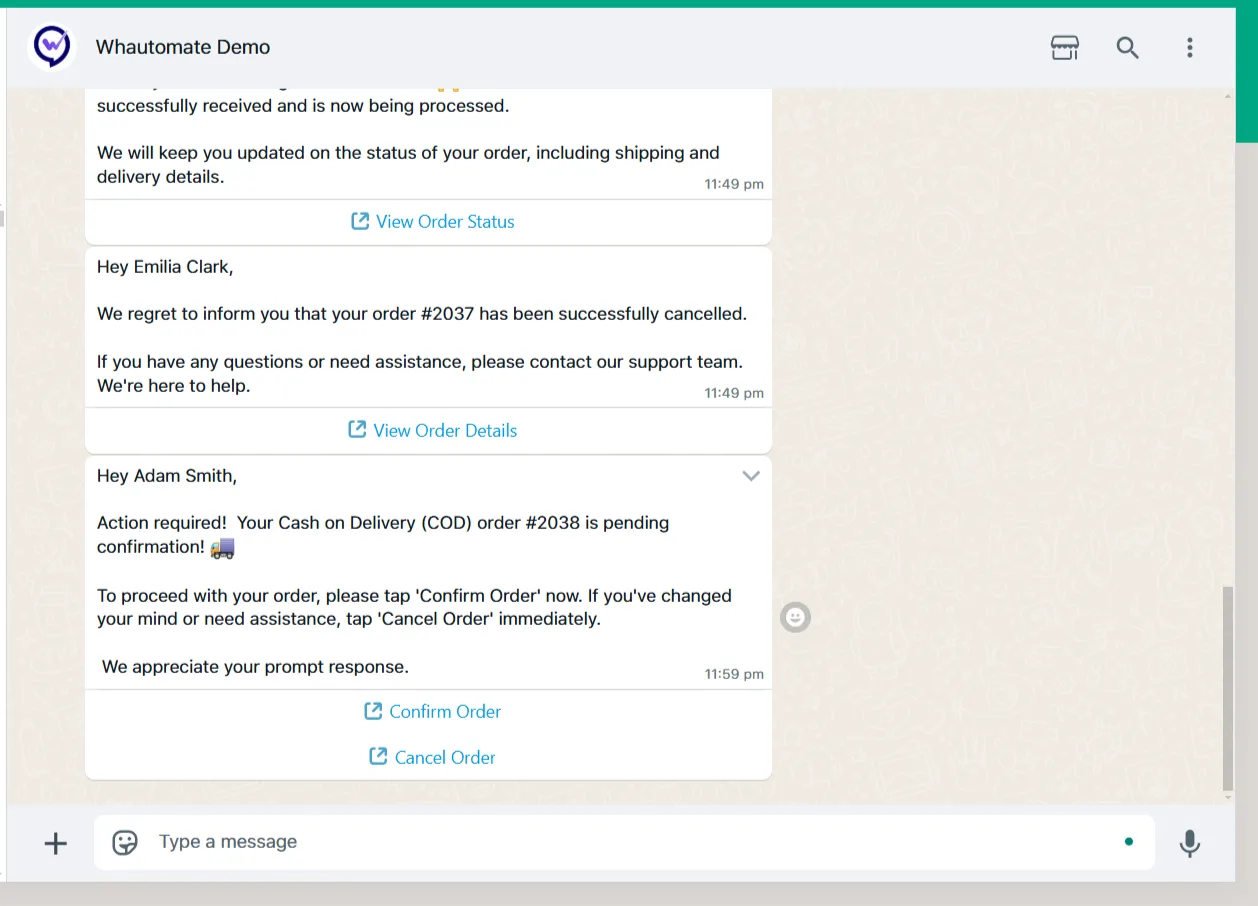

**Step 12: Place a Test Order**

Place a test order on your WooCommerce store to verify that the shipping address and phone number are now mandatory during checkout.

<figure><img src="https://810714386-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF8vuadG7OJ1fFdSBZATv%2Fuploads%2FlR36nKndheODmfEouX41%2Fimage.png?alt=media&amp;token=6bd0755c-b80b-45d8-83b6-043839a08950" alt=""><figcaption></figcaption></figure>
